9 Convert a colour to a grayscale value
The images captured by the webcam are colour images. Every pixel in a colour image is represented by 3 values: R, G, and B where: - R represents the amount of red light that is in the color - G represents the amount of green light that is in the colour, and - B represents the amount of blue light that is in the colour
In MATLAB, the values of R, G, and B usually lie in the range of 0 to 255 (but the range 0 to 1 is also commonly used).
For our simple target tracking problem it is much easier to work with grayscale images. Given the three colour values R, G, and B we can compute the corresponding gray value Y as:
\[ Y = 0.2989R + 0.5870G + 0.1140B \]
9.1 Write a function to convert a colour to a grayscale value
In MATLAB, create and complete the following function:
function gray = toGray(red, green, blue)
%TOGRAY Convert RGB to grayscale.
% gray = toGray(red, green, blue) converts the vectors of
% color values red, green, and blue to grayscale.
% For each value red(i), green(i), blue(i) the corresponding
% grayscale value is computed as:
%
% gray(i) = 0.2989 * red(i) + 0.5870 * green(i) + 0.1140 * blue(i)
%
% The returned vector gray is the same size as red, green, and blue.
You should pre-allocate the result vector gray
first (like we did in the script labF
) and then use a loop to compute the values of gray(i)
.
9.2 Test your function
Test your function by converting and displaying your captured colour image to grayscale by typing the following into the Command Window:
[rows, cols, layers] = size(colimg);
y = zeros(rows, cols);
for i = 1:rows
% converts each row of img to grayscale
y(i, :) = toGray(colimg(i, :, 1), colimg(i, :, 2), colimg(i, :, 3));
end
% convert y from double to an integer value between 0 and 255
y = uint8(y);
% show the grayscale image y
imshow(y)

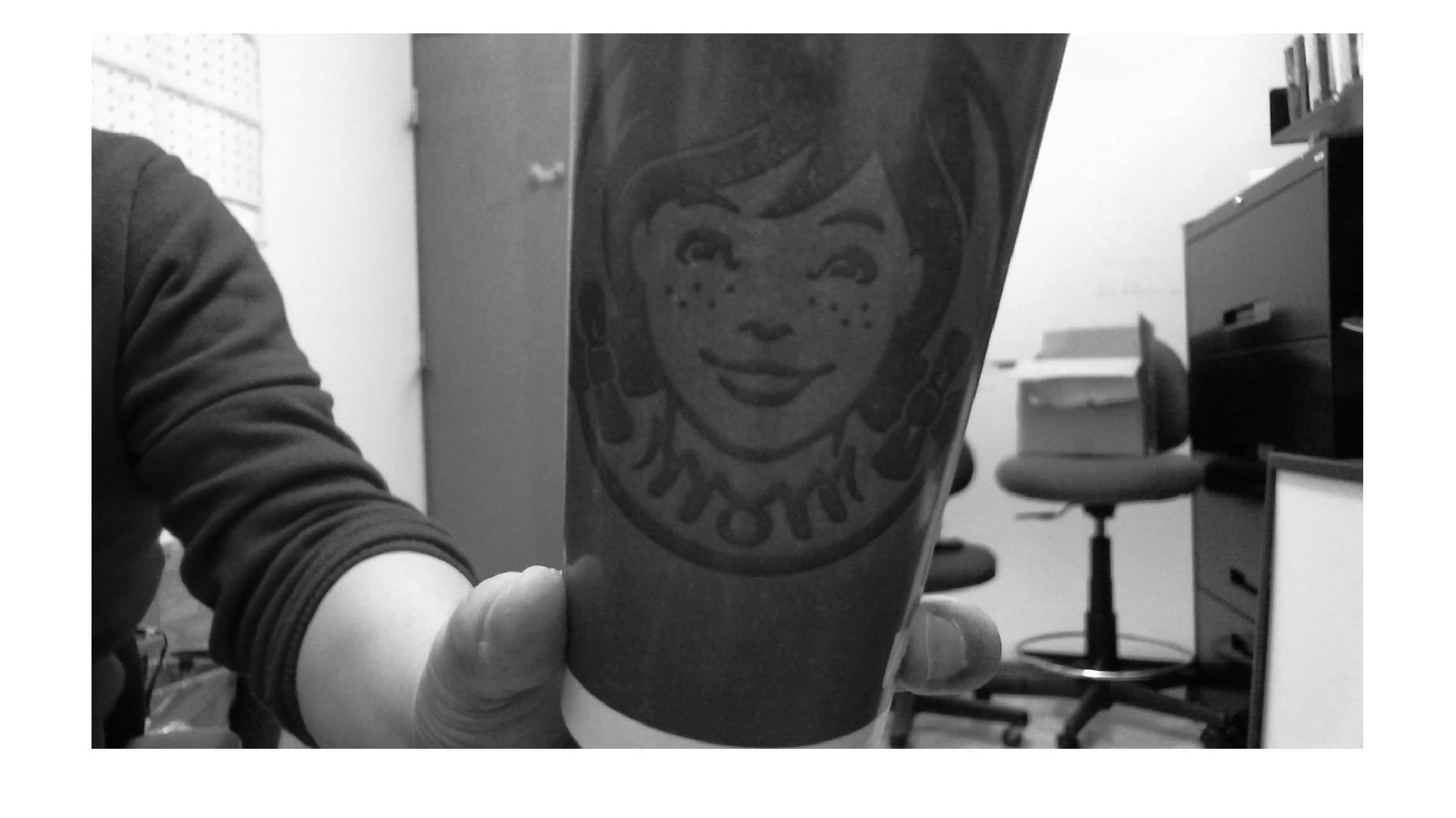

My colour image converted to grayscale looks like:
When you think that your function is working correctly, convert your captured image of the target to grayscale (it already looks like it is a grayscale image, but its actual representation is a colour image) by typing the following into the Command Window:
[rows, cols, layers] = size(img);
gray = zeros(rows, cols);
for i = 1:rows
% converts each row of img to grayscale
gray(i, :) = toGray(img(i, :, 1), img(i, :, 2), img(i, :, 3));
end
% convert y from double to an integer value between 0 and 255
gray = uint8(gray);
% show the grayscale image y
imshow(gray)
