ArThread Class Reference

#include <ArThread.h>

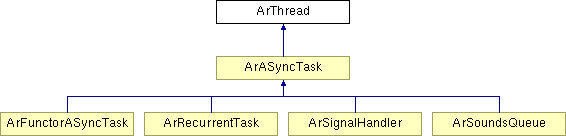

Inheritance diagram for ArThread:

ArASyncTask ArFunctorASyncTask ArRecurrentTask ArSignalHandler ArSoundsQueue List of all members.

Detailed Description

POSIX/WIN32 thread wrapper class.

create() will create the thread. That thread will run the given Functor.

A thread can either be in a detached state or a joinable state. If the thread is in a detached state, that thread can not be join()'ed upon. The thread will simply run until the program exits, or its function exits. A joinable thread means that another thread and call join() upon it. If this function is called, the caller will block until the thread exits its function. This gives a way to synchronize upon the lifespan of threads.

Calling cancel() will cancel the thread.

The static function self() will return a thread


Public Types

typedef std::map< ThreadType,
ArThread * >
MapType
enum  Status {
  STATUS_FAILED = 1, STATUS_NORESOURCE, STATUS_NO_SUCH_THREAD, STATUS_INVALID,
  STATUS_JOIN_SELF, STATUS_ALREADY_DETATCHED
}
typedef pthread_t ThreadType

Public Member Functions

 ArThread (ArFunctor *func, bool joinable=true, bool blockAllSignals=true)
 Constructor - starts the thread.
 ArThread (ThreadType thread, bool joinable, bool blockAllSignals=true)
 Constructor - starts the thread.
 ArThread (bool blockAllSignals=true)
 Constructor.
virtual void cancel (void)
 Cancel the thread.
virtual int create (ArFunctor *func, bool joinable=true, bool lowerPriority=true)
 Create and start the thread.
virtual int detach (void)
 Detatch the thread so it cant be joined.
bool getBlockAllSignals (void)
 Do we block all process signals at startup?
virtual ArFunctorgetFunc (void) const
 Get the functor that the thread runs.
virtual bool getJoinable (void) const
 Get the joinable status of the thread.
virtual ThreadType getOSThread (void) const
 Get the underlying os thread type.
pid_t getPID (void)
virtual bool getRunning (void) const
 Get the running status of the thread.
virtual bool getRunningWithLock (void)
 Get the running status of the thread, locking around the variable.
virtual const ThreadType * getThread (void) const
 Get the underlying thread type.
virtual const char * getThreadActivity (void)
virtual const char * getThreadName (void)
 Gets the name of the thread.
virtual bool isThreadFinished () const
 Returns whether the thread has been completed and can be deleted.
virtual bool isThreadStarted () const
 Returns whether the thread has been started.
virtual int join (void **ret=NULL)
 Join on the thread.
int lock (void)
virtual void logThreadInfo (void)
 Logs the information about this thread.
virtual void setRunning (bool running)
 Set the running value on the thread.
virtual void setThreadName (const char *name)
 Sets the name of the thread.
virtual void stopRunning (void)
 Stop the thread.
virtual void threadFinished (void)
 Marks the thread as finished and logs useful debugging information.
virtual void threadStarted (void)
 Marks the thread as started and logs useful debugging information.
int tryLock (void)
int unlock (void)
virtual ~ArThread ()
 Destructor.

Static Public Member Functions

static void cancelAll (void)
 Cancel all threads.
static ArLog::LogLevel getLogLevel (void)
 Gets the logging level for thread information.
static ThreadType getThisOSThread (void)
 Get the underlying os thread type of this thread.
static const ThreadType * getThisThread (void)
 Get the underlying thread type of this thread.
static const char * getThisThreadName (void)
 Gets the name of the this thread.
static void init (void)
 Initialize the internal book keeping structures.
static void joinAll (void)
 Join on all threads.
static ThreadType osSelf (void)
 Returns the os self of the current thread.
static ArThreadself (void)
 Returns the instance of your own thread (the current one).
static void setLogLevel (ArLog::LogLevel level)
 Sets the logging level for thread information.
static void stopAll ()
 Stop all threads.
static void yieldProcessor (void)
 Yield the processor to another thread.

Protected Member Functions

virtual int doJoin (void **ret=NULL)

Protected Attributes

bool myBlockAllSignals
bool myFinished
ArFunctormyFunc
bool myJoinable
ArMutex myMutex
std::string myName
pid_t myPID
bool myRunning
 State variable to denote when the thread should continue or exit.
bool myStarted
ArStrMap myStrMap
ThreadType myThread

Static Protected Attributes

static ArLog::LogLevel ourLogLevel = ArLog::Verbose
static MapType ourThreads
static ArMutex ourThreadsMutex
static std::string ourUnknownThreadName = "unknown"


Member Enumeration Documentation

enum ArThread::Status


Enumeration values:
STATUS_FAILED  Failed to create the thread.
STATUS_NORESOURCE  Not enough system resources to create the thread.
STATUS_NO_SUCH_THREAD  The thread can no longer be found.
STATUS_INVALID  Thread is detached or another thread is joining on it.
STATUS_JOIN_SELF  Thread is your own thread. Can't join on self.
STATUS_ALREADY_DETATCHED  Thread is already detatched.


Member Function Documentation

virtual const char* ArThread::getThreadActivity void   )  [inline, virtual]


Gets a string that describes what the thread is doing NULL if it doesn't know

Reimplemented in ArASyncTask.

void ArThread::init void   )  [static]


Initialize the internal book keeping structures.

Initializes the internal structures which keep track of what thread is what. This is called by Aria::init(), so the user will not normaly need to call this function themselves. This funtion *must* be called from the main thread of the application. In otherwords, it should be called by main().

bool ArThread::isThreadFinished  )  const [virtual]


Returns whether the thread has been completed and can be deleted.

This is dependent on the thread implementation calling the threadFinished() method.

bool ArThread::isThreadStarted  )  const [virtual]


Returns whether the thread has been started.

This is dependent on the thread implementation calling the threadStarted() method.

int ArThread::lock void   )  [inline]


Lock the thread instance

Java and Python Wrappers: Not available in Java or Python wrapper libraries.

ArThread::ThreadType ArThread::osSelf void   )  [static]


Returns the os self of the current thread.

This returns the OS thread, and should be used in place of self if its being used a lot.

ArThread * ArThread::self void   )  [static]


Returns the instance of your own thread (the current one).

If a newly created thread calls self() on itself too soon, this will return NULL. This is due to the fact that the thread is first created and started. Then the operating system returns the thread ID and thread that called create() then updates the list of threads with the new thread ID. There is just not much that can be done about that. The use should be aware of this caveat.

Note that this does a lookup on the thread map, so it might be a little slow, if you need to use this a lot you should probably use osSelf instead.

void ArThread::threadFinished void   )  [virtual]


Marks the thread as finished and logs useful debugging information.

This method should be called after the main thread loop ends. It enables the creator of the thread to determine that the thread has actually been completed and can be deleted.

void ArThread::threadStarted void   )  [virtual]


Marks the thread as started and logs useful debugging information.

If you call this function in your functor (ie runThread) it'll then call some things for logging (to make debugging easier) This method should be called before the main thread loop begins.

int ArThread::tryLock void   )  [inline]


Try to lock the thread instance without blocking

Java and Python Wrappers: Not available in Java or Python wrapper libraries.

int ArThread::unlock void   )  [inline]


Unlock the thread instance

Java and Python Wrappers: Not available in Java or Python wrapper libraries.


The documentation for this class was generated from the following files:
