ArGlobalFunctor4< P1, P2, P3, P4 > Class Template Reference

#include <ArFunctor.h>

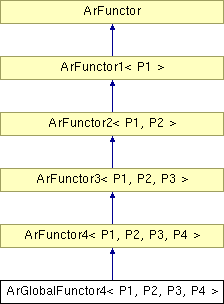

Inheritance diagram for ArGlobalFunctor4< P1, P2, P3, P4 >:

List of all members.

---

Detailed Description

template<class P1, class P2, class P3, class P4>
class ArGlobalFunctor4< P1, P2, P3, P4 >

Functor for a global function with 4 parameters.

This is a class for global functions which take 4 parameters. This ties a C style function pointer into the functor class hierarchy as a convience. Code that has a reference to this class and treat it as an ArFunctor can use it like any other functor.

For an overall description of functors, see ArFunctor.

Public Member Functions
	ArGlobalFunctor4 (void(*func)(P1, P2, P3, P4), P1 p1, P2 p2, P3 p3, P4 p4)
	Constructor - supply function pointer, default parameters.
	ArGlobalFunctor4 (void(*func)(P1, P2, P3, P4), P1 p1, P2 p2, P3 p3)
	Constructor - supply function pointer, default parameters.
	ArGlobalFunctor4 (void(*func)(P1, P2, P3, P4), P1 p1, P2 p2)
	Constructor - supply function pointer, default parameters.
	ArGlobalFunctor4 (void(*func)(P1, P2, P3, P4), P1 p1)
	Constructor - supply function pointer, default parameters.
	ArGlobalFunctor4 (void(*func)(P1, P2, P3, P4))
	Constructor - supply function pointer.
	ArGlobalFunctor4 ()
	Constructor.
virtual void	invoke (P1 p1, P2 p2, P3 p3, P4 p4)
	Invokes the functor.
virtual void	invoke (P1 p1, P2 p2, P3 p3)
	Invokes the functor.
virtual void	invoke (P1 p1, P2 p2)
	Invokes the functor.
virtual void	invoke (P1 p1)
	Invokes the functor.
virtual void	invoke (void)
	Invokes the functor.
virtual void	setP1 (P1 p1)
	Set the default parameter.
virtual void	setP2 (P2 p2)
	Set the default 2nd parameter.
virtual void	setP3 (P3 p3)
	Set the default third parameter.
virtual void	setP4 (P4 p4)
	Set the default fourth parameter.
virtual	~ArGlobalFunctor4 ()
	Destructor.
Protected Attributes
void(*	myFunc )(P1, P2, P3, P4)
P1	myP1
P2	myP2
P3	myP3
P4	myP4

---

Constructor & Destructor Documentation

template<class P1, class P2, class P3, class P4> ArGlobalFunctor4< P1, P2, P3, P4 >::ArGlobalFunctor4 (  void(*)(P1, P2, P3, P4)  func  )  [inline]

Constructor - supply function pointer. Parameters: func  global function pointer

template<class P1, class P2, class P3, class P4> ArGlobalFunctor4< P1, P2, P3, P4 >::ArGlobalFunctor4 (  void(*)(P1, P2, P3, P4)  func, P1  p1 )  [inline]

Constructor - supply function pointer, default parameters. Parameters: func  global function pointer p1  default first parameter

template<class P1, class P2, class P3, class P4> ArGlobalFunctor4< P1, P2, P3, P4 >::ArGlobalFunctor4 (  void(*)(P1, P2, P3, P4)  func, P1  p1, P2  p2 )  [inline]

Constructor - supply function pointer, default parameters. Parameters: func  global function pointer p1  default first parameter p2  default second parameter

template<class P1, class P2, class P3, class P4> ArGlobalFunctor4< P1, P2, P3, P4 >::ArGlobalFunctor4 (  void(*)(P1, P2, P3, P4)  func, P1  p1, P2  p2, P3  p3 )  [inline]

Constructor - supply function pointer, default parameters. Parameters: func  global function pointer p1  default first parameter p2  default second parameter p3  default third parameter

template<class P1, class P2, class P3, class P4> ArGlobalFunctor4< P1, P2, P3, P4 >::ArGlobalFunctor4 (  void(*)(P1, P2, P3, P4)  func, P1  p1, P2  p2, P3  p3, P4  p4 )  [inline]

Constructor - supply function pointer, default parameters. Parameters: func  global function pointer p1  default first parameter p2  default second parameter p3  default third parameter p4  default fourth parameter

---

Member Function Documentation

template<class P1, class P2, class P3, class P4> virtual void ArGlobalFunctor4< P1, P2, P3, P4 >::invoke (  P1  p1, P2  p2, P3  p3, P4  p4 )  [inline, virtual]

Invokes the functor. Parameters: p1  first parameter p2  second parameter p3  third parameter p4  fourth parameter Implements ArFunctor4< P1, P2, P3, P4 >.

template<class P1, class P2, class P3, class P4> virtual void ArGlobalFunctor4< P1, P2, P3, P4 >::invoke (  P1  p1, P2  p2, P3  p3 )  [inline, virtual]

Invokes the functor. Parameters: p1  first parameter p2  second parameter p3  third parameter Implements ArFunctor4< P1, P2, P3, P4 >.

template<class P1, class P2, class P3, class P4> virtual void ArGlobalFunctor4< P1, P2, P3, P4 >::invoke (  P1  p1, P2  p2 )  [inline, virtual]

Invokes the functor. Parameters: p1  first parameter p2  second parameter Implements ArFunctor4< P1, P2, P3, P4 >.

template<class P1, class P2, class P3, class P4> virtual void ArGlobalFunctor4< P1, P2, P3, P4 >::invoke (  P1  p1  )  [inline, virtual]

Invokes the functor. Parameters: p1  first parameter Implements ArFunctor4< P1, P2, P3, P4 >.

template<class P1, class P2, class P3, class P4> virtual void ArGlobalFunctor4< P1, P2, P3, P4 >::setP1 (  P1  p1  )  [inline, virtual]

Set the default parameter. Parameters: p1  default first parameter

template<class P1, class P2, class P3, class P4> virtual void ArGlobalFunctor4< P1, P2, P3, P4 >::setP2 (  P2  p2  )  [inline, virtual]

Set the default 2nd parameter. Parameters: p2  default second parameter

template<class P1, class P2, class P3, class P4> virtual void ArGlobalFunctor4< P1, P2, P3, P4 >::setP3 (  P3  p3  )  [inline, virtual]

Set the default third parameter. Parameters: p3  default third parameter

template<class P1, class P2, class P3, class P4> virtual void ArGlobalFunctor4< P1, P2, P3, P4 >::setP4 (  P4  p4  )  [inline, virtual]

Set the default fourth parameter. Parameters: p4  default fourth parameter

---

The documentation for this class was generated from the following file:

• ArFunctor.h

---
