ArThread Class Reference

#include <ArThread.h>

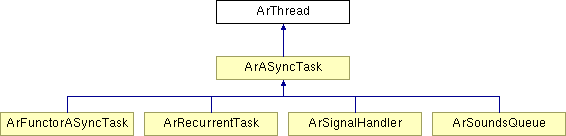

Inheritance diagram for ArThread:

List of all members.

---

Detailed Description

POSIX/WIN32 thread wrapper class.

create() will create the thread. That thread will run the given Functor.

A thread can either be in a detached state or a joinable state. If the thread is in a detached state, that thread can not be join()'ed upon. The thread will simply run until the program exits, or its function exits. A joinable thread means that another thread and call join() upon it. If this function is called, the caller will block until the thread exits its function. This gives a way to synchronize upon the lifespan of threads.

Calling cancel() will cancel the thread.

The static function self() will return a thread

Definition at line 54 of file ArThread.h.

Public Types
typedef std::map< ThreadType, ArThread * >	MapType
enum	Status {   STATUS_FAILED = 1, STATUS_NORESOURCE, STATUS_NO_SUCH_THREAD, STATUS_INVALID,   STATUS_JOIN_SELF, STATUS_ALREADY_DETATCHED }
typedef pthread_t	ThreadType
Public Member Functions
	ArThread (ArFunctor *func, bool joinable=true, bool blockAllSignals=true)
	Constructor - starts the thread.
	ArThread (ThreadType thread, bool joinable, bool blockAllSignals=true)
	Constructor - starts the thread.
	ArThread (bool blockAllSignals=true)
	Constructor.
virtual void	cancel (void)
	Cancel the thread.
virtual int	create (ArFunctor *func, bool joinable=true, bool lowerPriority=true)
	Create and start the thread.
virtual int	detach (void)
	Detatch the thread so it cant be joined.
bool	getBlockAllSignals (void)
	Do we block all process signals at startup?
virtual ArFunctor *	getFunc (void) const
	Get the functor that the thread runs.
virtual bool	getJoinable (void) const
	Get the joinable status of the thread.
virtual bool	getRunning (void) const
	Get the running status of the thread.
virtual bool	getRunningWithLock (void)
	Get the running status of the thread, locking around the variable.
virtual const ThreadType *	getThread (void) const
	Get the underlying thread type.
virtual const char *	getThreadName (void)
	Gets the name of the functor.
virtual int	join (void **ret=NULL)
	Join on the thread.
int	lock (void)
	Lock the thread instance.
virtual void	logThreadInfo (void)
	Logs the information about this thread.
virtual void	setRunning (bool running)
	Set the running value on the thread.
virtual void	setThreadName (const char *name)
	Sets the name of the thread.
virtual void	stopRunning (void)
	Stop the thread.
virtual void	threadStarted (void)
	Thread to call in the function that is this thread.
int	tryLock (void)
	Try to lock the thread instance without blocking.
int	unlock (void)
	Unlock the thread instance.
virtual	~ArThread ()
	Destructor.
Static Public Member Functions
static void	cancelAll (void)
	Cancel all threads.
static ArLog::LogLevel	getLogLevel (void)
	Gets the logging level for thread information.
static void	init (void)
	Initialize the internal book keeping structures.
static void	joinAll (void)
	Join on all threads.
static ArThread *	self (void)
	Returns the instance of your own thread.
static void	setLogLevel (ArLog::LogLevel level)
	Sets the logging level for thread information.
static void	stopAll ()
	Stop all threads.
static void	yieldProcessor (void)
	Yield the processor to another thread.
Protected Member Functions
virtual int	doJoin (void **ret=NULL)
Protected Attributes
bool	myBlockAllSignals
ArFunctor *	myFunc
bool	myJoinable
ArMutex	myMutex
std::string	myName
pid_t	myPID
bool	myRunning
	State variable to denote when the thread should continue or exit.
ArStrMap	myStrMap
ThreadType	myThread
Static Protected Attributes
static ArLog::LogLevel	ourLogLevel = ArLog::Verbose
static MapType	ourThreads
static ArMutex	ourThreadsMutex

---

Member Enumeration Documentation

enum ArThread::Status

Enumeration values: STATUS_FAILED  Failed to create the thread. STATUS_NORESOURCE  Not enough system resources to create the thread. STATUS_NO_SUCH_THREAD  The thread can no longer be found. STATUS_INVALID  Thread is detached or another thread is joining on it. STATUS_JOIN_SELF  Thread is your own thread. Can't join on self. STATUS_ALREADY_DETATCHED  Thread is already detatched. Definition at line 65 of file ArThread.h.

---

Member Function Documentation

void ArThread::init (  void   )  [static]

Initialize the internal book keeping structures. Initializes the internal structures which keep track of what thread is what. This is called by Aria::init(), so the user will not normaly need to call this function themselves. This funtion *must* be called from the main thread of the application. In otherwords, it should be called by main(). Definition at line 65 of file ArThread_LIN.cpp.

ArThread * ArThread::self (  void   )  [static]

Returns the instance of your own thread. If a newly created thread calls self() on itself too soon, this will return NULL. This is due to the fact that the thread is first created and started. Then the operating system returns the thread ID and thread that called create() then updates the list of threads with the new thread ID. There is just not much that can be done about that. The use should be aware of this caveat. Definition at line 94 of file ArThread_LIN.cpp.

void ArThread::threadStarted (  void   )  [virtual]

Thread to call in the function that is this thread. If you call this function in your functor (ie runThread) it'll then call some things for logging (to make debugging easier) Definition at line 231 of file ArThread_LIN.cpp.

---

The documentation for this class was generated from the following files:

• ArThread.h
• ArThread.cpp
• ArThread_LIN.cpp
• ArThread_WIN.cpp

---
