EECS2030 Lab 6

Introduction

In this lab, you must implement 5 recursive algorithms. You should review the course notes and lecture slides before attempting this lab.

For Questions 1–3, you are given examples that should help you determine the base case(s) and the recursive invocation.
For Questions 4 and 5, you need to find the base cases and recursive invocations on your own.

Constraints: no regular expressions, loops, or methods such as "contains", "matches" or "replace*" should be used in your implementation for these methods.

You will implement methods for all Questions within the RecursiveTasks utility class. The API for this class can be found here:

• lab APIs

Starter project can be downloaded from the following link (this includes some initial JUnit for questions 1-3. Add more test cases to be thorough:

• starter code

Question 1: Return the parenthesis enclosed substring

To do this, the input string str will be recursively 'eroded' until only the string enclosed in parenthesis remains. The string inside the parenthesis (inclusive of the parenthesis), will be returned as the output of the method.


getParenthesis("abc(xyz)st")
→ getParenthesis("bc(xyz)st")			// recursive calls
→    getParenthesis("c(xyz)st")
→       getParenthesis("(xyz)st")
→          getParenthesis("(xyz)s")
→ 	      getParenthesis("(xyz)")
→ 	         getParenthesis("(xyz)")
→ 	       	     "(xyz)"	   		// base case "(xyz)"

Other examples of input-output pairings include:

getParenthesis("xyz(abc)") → "(abc)"
getParenthesis("(a)xy")    → "(a)"
getParenthesis("xy()z")    → "()"
getParenthesis("(.)1")     → "(.)"

The base case occurs when the string str has an open "(" and close ")" parenthesis in both the first and last character position respectively.

Note: You cannot actually remove the last character from a string because strings are immutable; for a string s you can obtain the substring containing all the characters of s except the last element by using substring:

String allButLastChar = s.substring(0, s.length() - 1);

Implement the method getParenthesis(String str) using the recursive algorithm described above.

Question 2: Count occurrences of a sub-string within a string

This method counts the number of times the substring sub occurs in a string. To do this, the input string str will be recursively 'eroded' until the first part of the string is sub. If so, 1 will be added to the count.


numOccurances("dogmonkeydog")
= 1 + numOccurances("monkeydog")		// recursive calls
=     0 + numOccurances("onkeydog")
=         0 + numOccurances("nkeydog")
=             0 + numOccurances("keydog")
= 	          ...
= 	             0 + numOccurances("dog")
= 	       	         1 		   	// base case "dog"

Other examples of input-output pairings include:

numOccurances("dogmonkeydog","dog") will return 2
numOccurances("dogmonkeydog","mon") will return 1
numOccurances("dogmonkeydog","cow") will return 0

The base case occurs when the string str is equal to sub or the str is smaller than sub.

Implement the method numOccurances(String str, String sub) using the recursive algorithm described above.

Question 3: Determine if a string is nested and balanced parenthesis

This method should, when given a string, return true if it is a nesting of zero or more pairs of balanced parenthesis, like "(())" or "((()))".

If the parenthesis are unbalanced, or the string includes characters other than parenthesis, the method should return false

E.g.
parenthIsNested("(())")  will return true
parenthIsNested("((()))") will return true
parenthIsNested("(((x))") will return false

The base cases are "()" or a string without parenthesis

Implement the method parenthIsNested(String str) by checking the first and last chars, and then recursing (if necessary) on what's inside.

Question 4: Create a fractal pattern from circles

Fractal patterns are self similar repeating patterns over different scales. These are often found in nature, and are often used in computer graphics to generate natural looking scenes (e.g. mountains, trees, etc.)

A fractal is defined by a spatial operation (drawing) that is defined for a given location on an image. The operation is repeated with a modification to its scale, so that the scaled down version of the pattern is drawn again, usually at a new location. The methodology for selecting a new location and repeating the drawing operation can be defined as a recursive step in the process, and this is repeated for n levels of recursion, or until some parameter in the drawing meets a terminating condition.

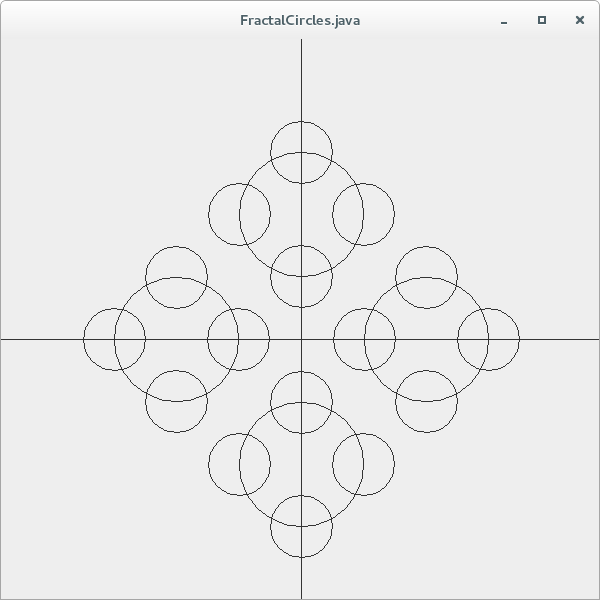

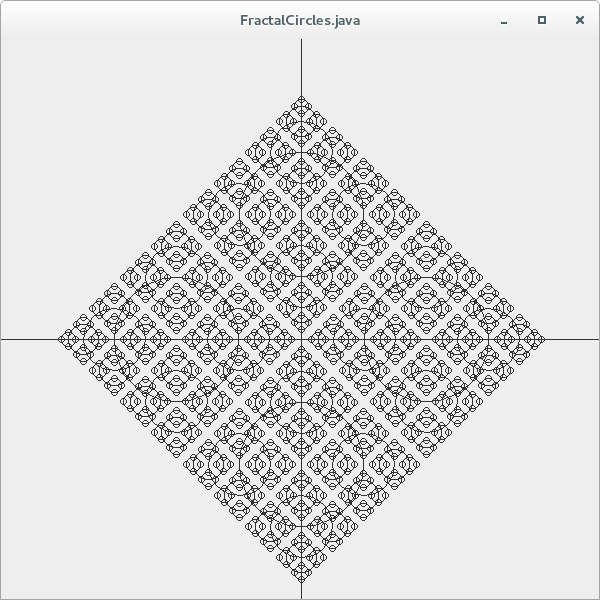

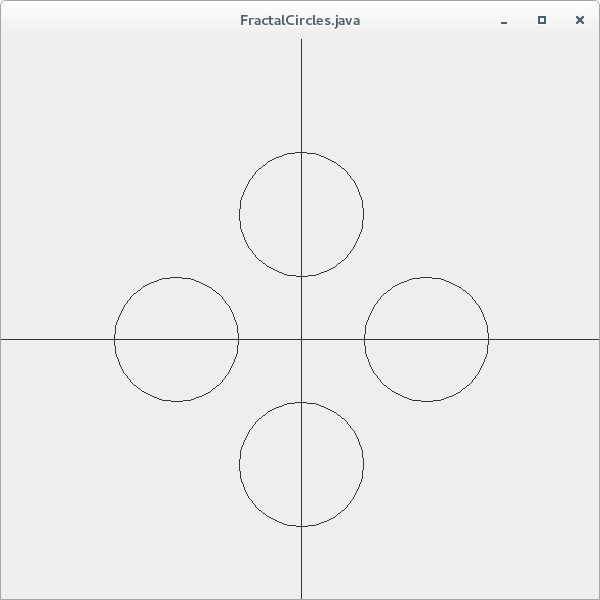

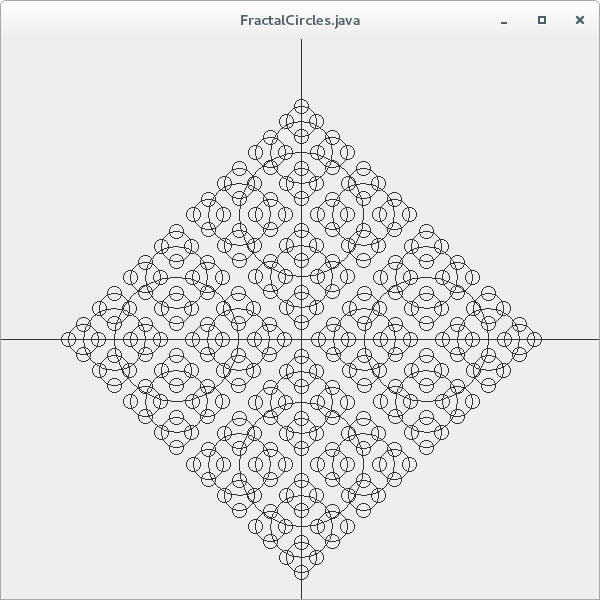

The following fractal for instance, is generated starting with an initial set of 4 circles, each centred on an imaginary circle of radius R [i.e. at (-R,0), (+R,0), (0,-R), and (0,+R): where the centre of the drawing is considered the origin (0,0)]. The radius (r) for each of the circles is R/2.

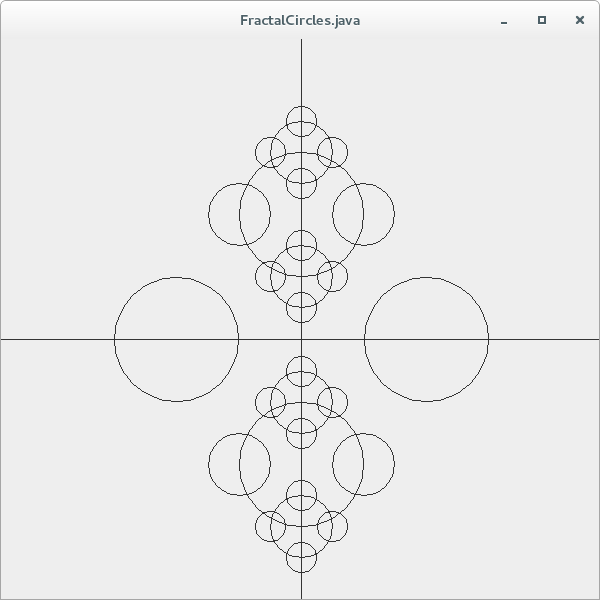

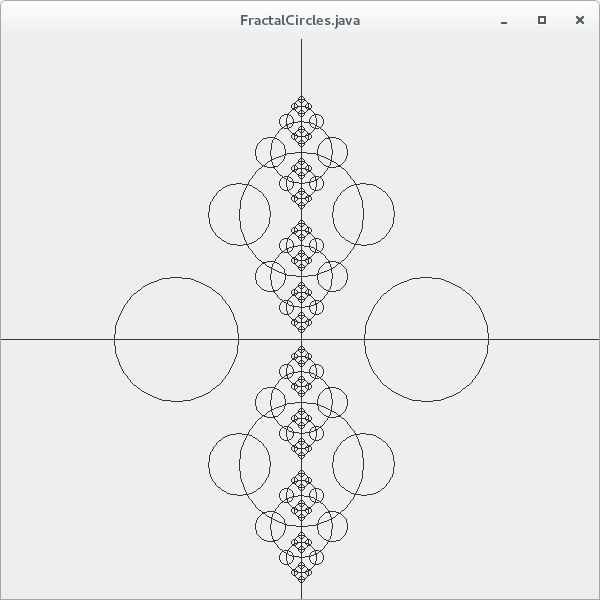

In a variation of this example, the set of 4 circles is generated, however, they are only generated and centred on the top and bottom circle from the parent set at each recursive step. This results in the following fractal pattern (shown for n=3 and n=5 levels of recursion respectively):

The task for Question 4, is to complete the recursive function genFractal(list, cx, cy, R, n, mode), which will compute and generate Circle objects recursively and return them in the list (a List of Circle objects).


Assume:
list = reference to List (see Circle class in API);
cx,cy = centre of the set of 4 circles;
R = radius on which the set of 4 circles is positioned;
n = recursive levels to compute (i.e. n=k will recurse k times);
mode = mode of fractal pattern (defines on which circles recursion will take place) - see below

The helper classes in FractalPatterns.java take care of drawing the circles to a window. You do not need to complete anything other than the genFractal method (in your RecursiveTasks class), however you can modify the call to this method to explore and draw different types of fractal patterns.

The goal of genFractal is to create the above set of fractal patterns, as determined by the variable mode. Mode is an array of 4 boolean values, each one indicating whether or not to recursively generate the pattern of 4 circles at every circle centre, or at a subset of these. Assume that mode specifies a boolean flag representing [left, right, up, down]:

i.e.
boolean [] mode = {true,true,true,true} will generate the first fractal pattern shown above
boolean [] mode = {false,false,true,true} will generate the second fractal pattern shown above

You will need to define the base case(s) yourself. Test cases are not provided, however you should create some to evaluate that the list of Circle objects is expected. Complete the genFractal method.

E.g.
sumSome(0, [2, 4, 8], 0, 10) → true
sumSome(0, [2, 4, 8], 0, 14) → true
sumSome(0, [2, 4, 8], 0, 9)  → false

submit 2030 lab6 RecursiveTasks.java

submit 2030 lab6 RecursiveTasks.java group.txt
